UWB Active / Forklift Safety System

Forklift Anti-Collision
Wearables

UWB-Based Proximity Alert & Speed Control Solution for Pedestrian Safety. Prevent collisions between industrial vehicles and ground personnel in real time.

UWB Precision IP54 Rated Relay Control No Wi-Fi/GPS 90–110 dB

Request Demo Integration Guide

Nex-G UWB Forklift Safety System

1–10m

Detection Range

±20cm

Proximity Accuracy

<200ms

System Latency

5 Days

Wearable Battery Life

90–110 dB

Audible Alert Output

Product Overview

Real-time proximity
safety around forklifts.

The Forklift Anti-Collision Wearables system uses Ultra-Wideband (UWB) proximity detection to identify when pedestrians enter configurable forklift danger zones. Wearable tags and a forklift receiver provide real-time alerts, while dual potential-free relay contacts can interface with vehicle control systems for speed reduction or engine cut-off applications.

UWB precision 1–10m configurable range ±20cm accuracy Real-time alerts Relay control No Wi-Fi/GPS dependency

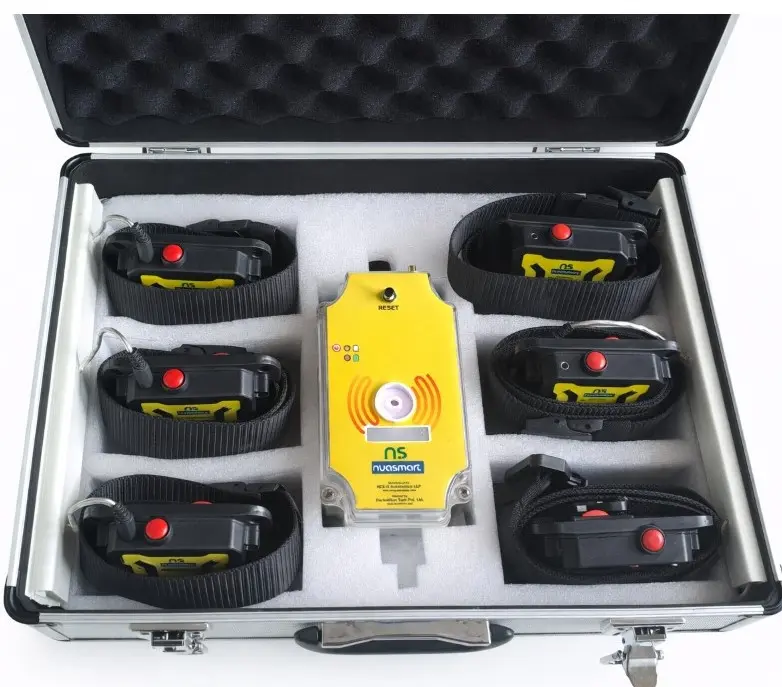

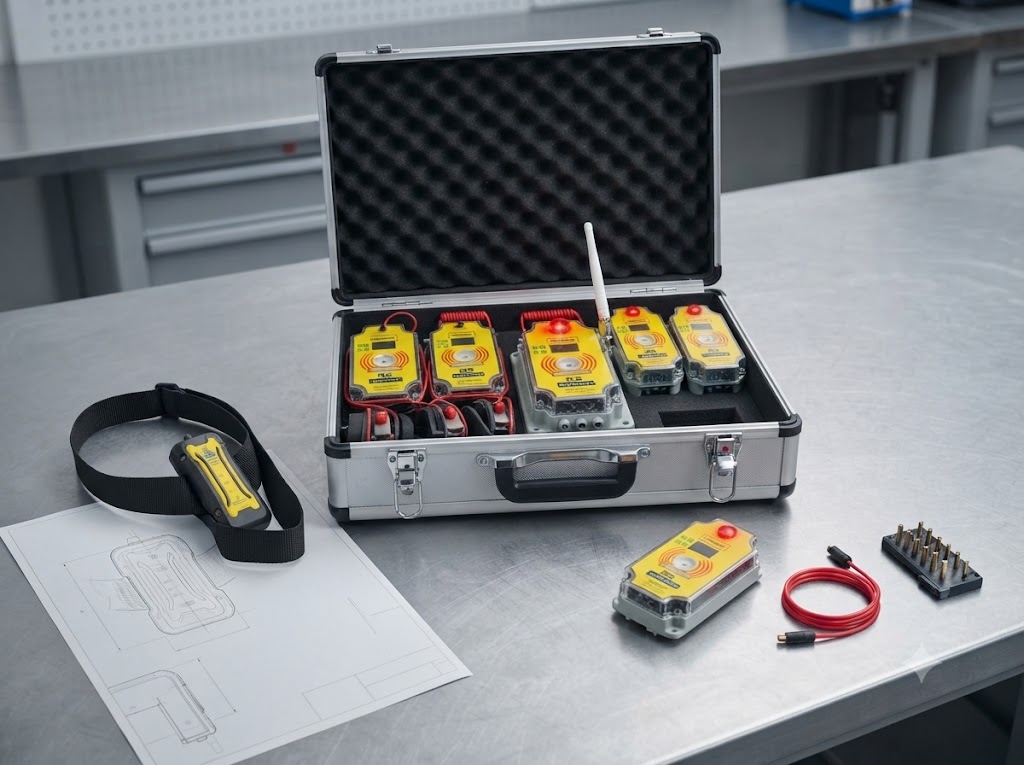

Forklift Anti-Collision Wearables industrial safety system

UWB-Based Proximity Safety Architecture

From pedestrian detection
to vehicle control.

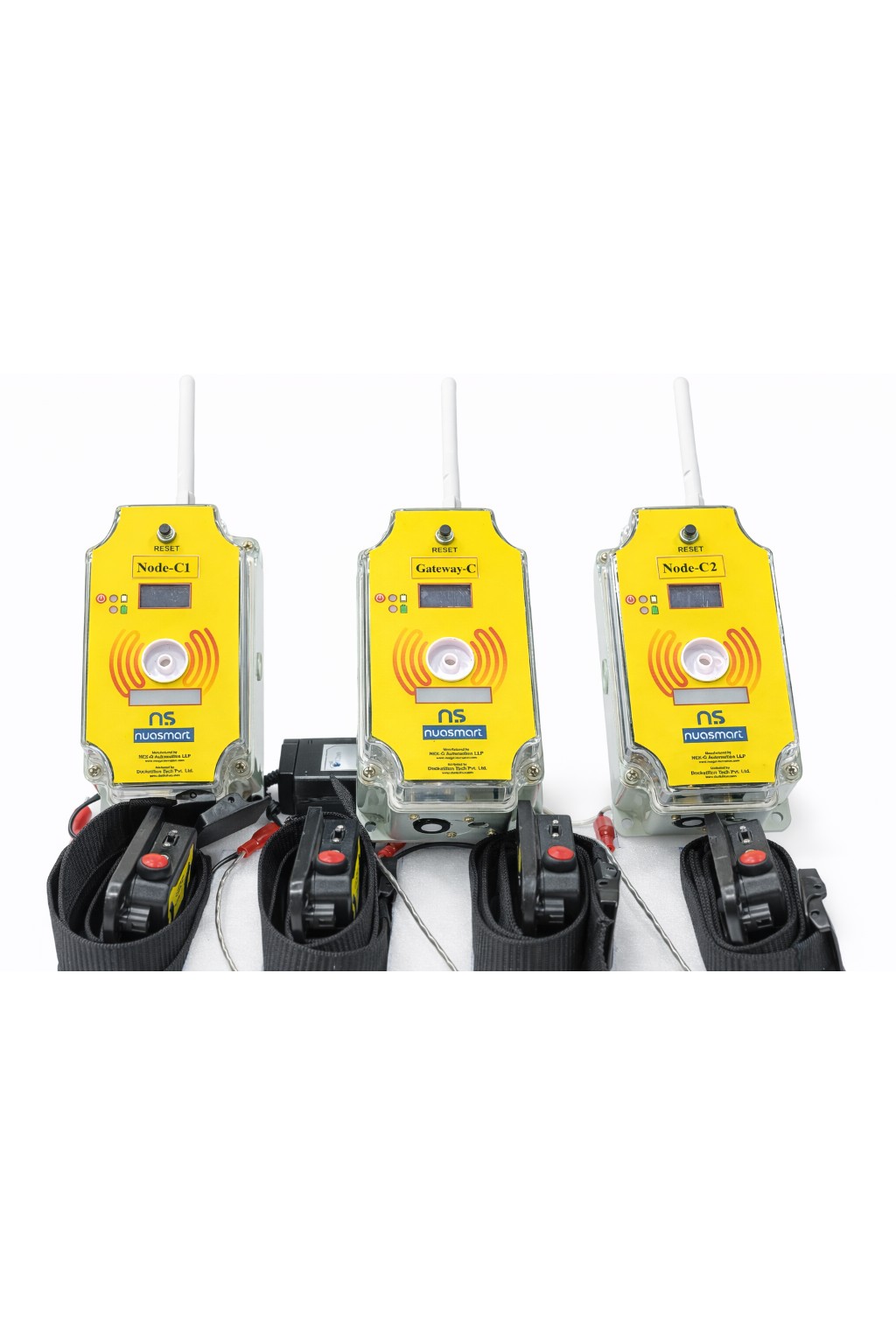

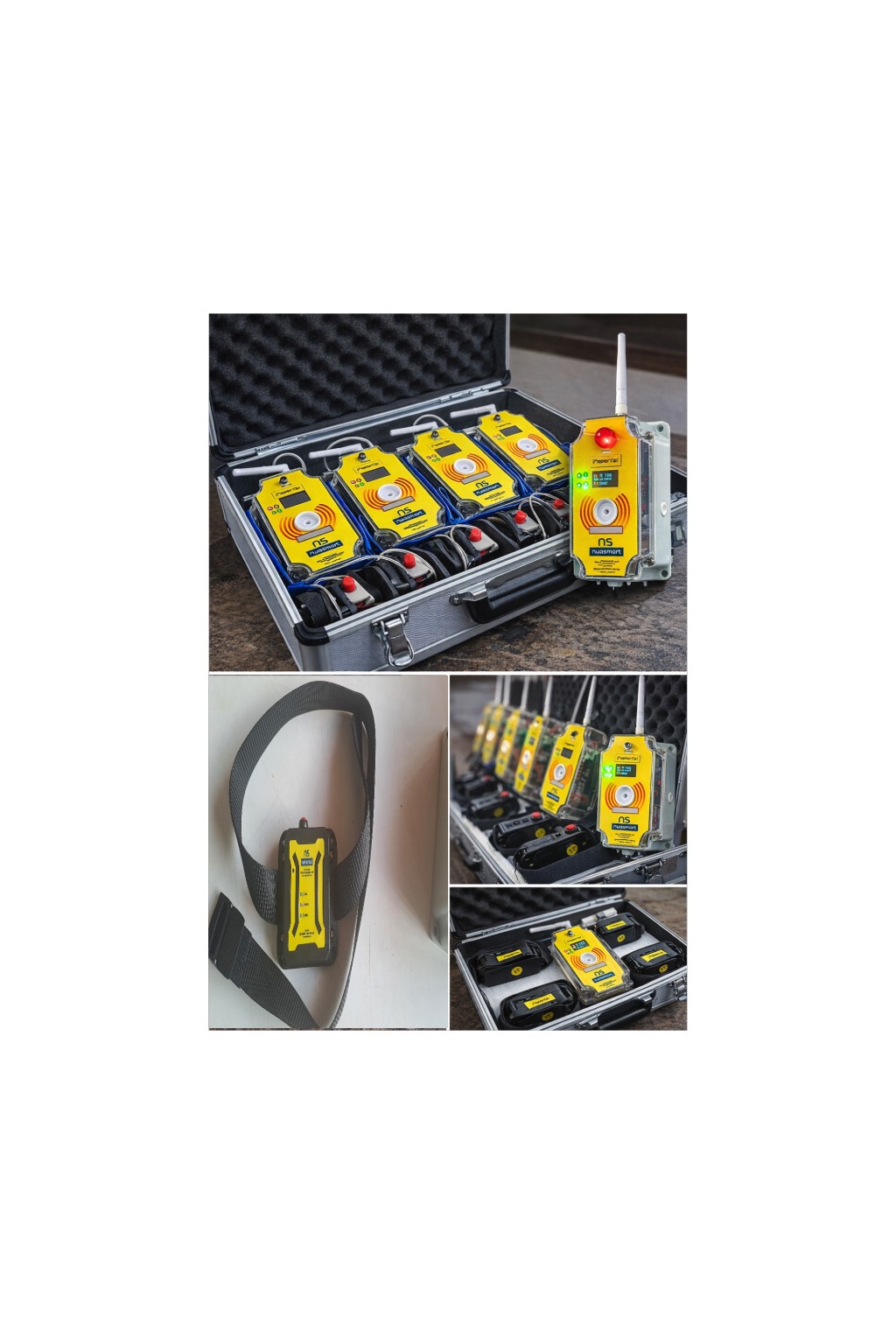

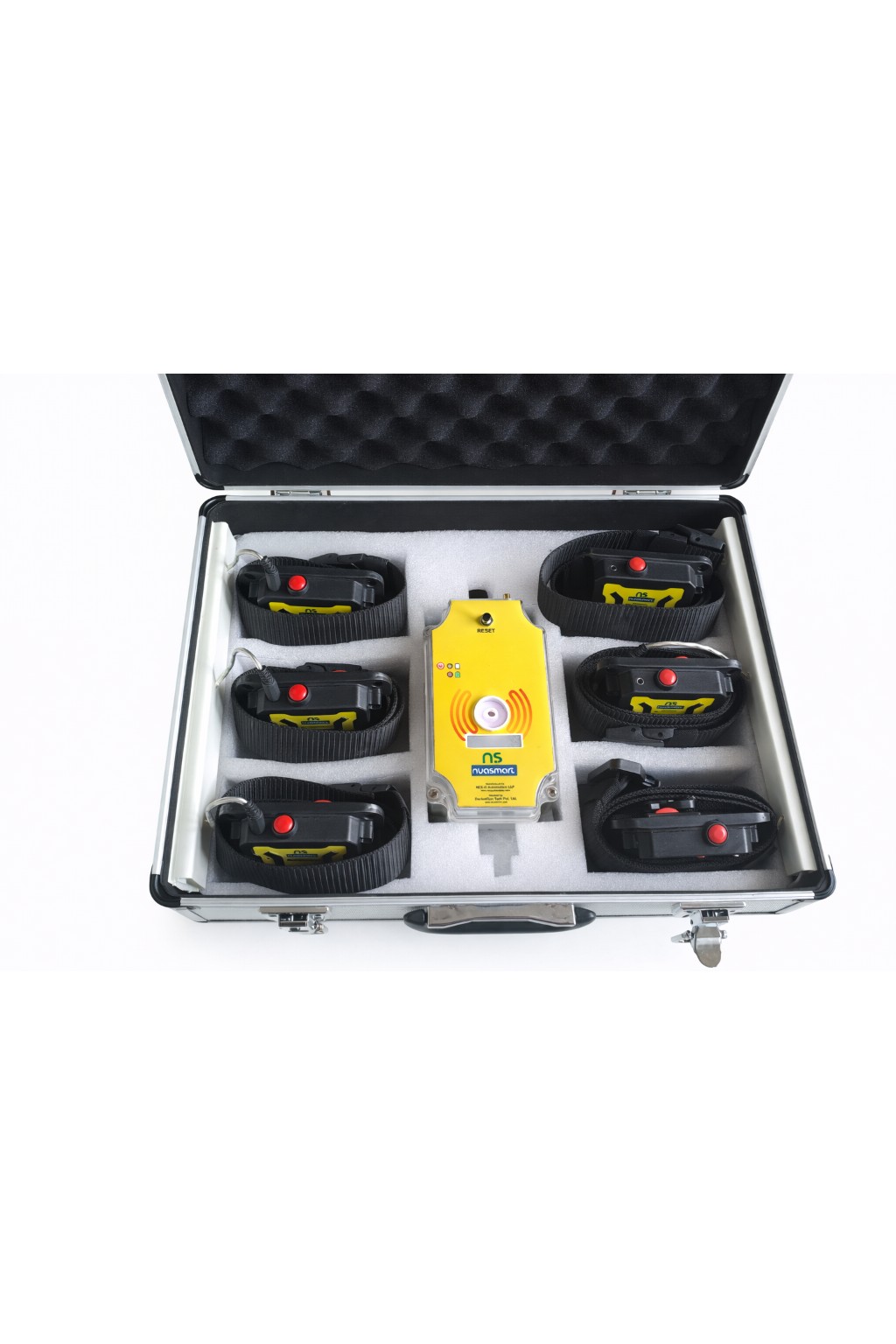

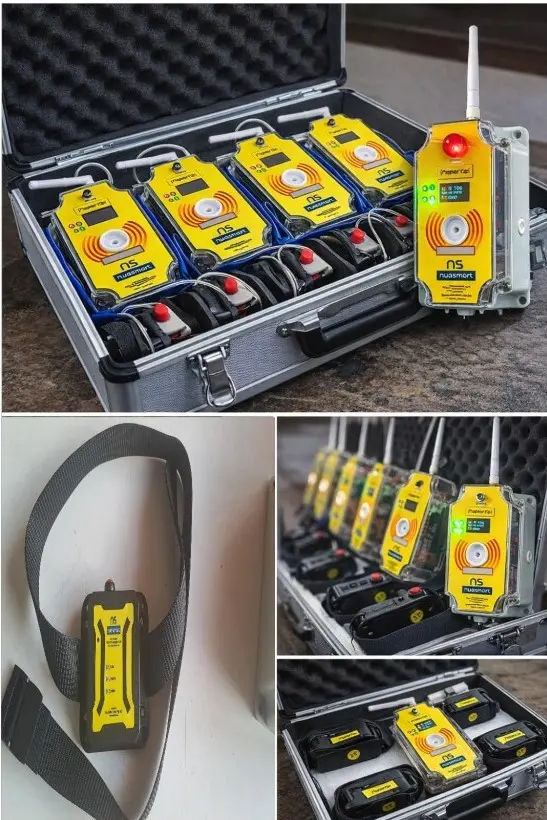

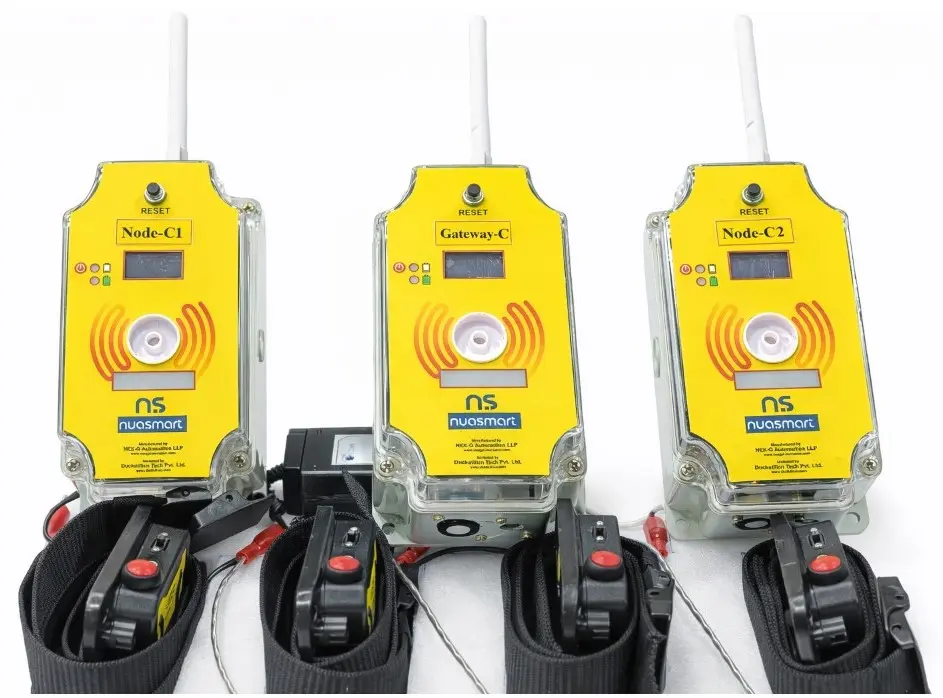

Belt-worn UWB tags communicate with the forklift-mounted receiver to detect proximity and activate audible and visual warnings. The receiver also provides potential-free relay contacts for compatible vehicle control systems.

01 UWB Wearable Tags

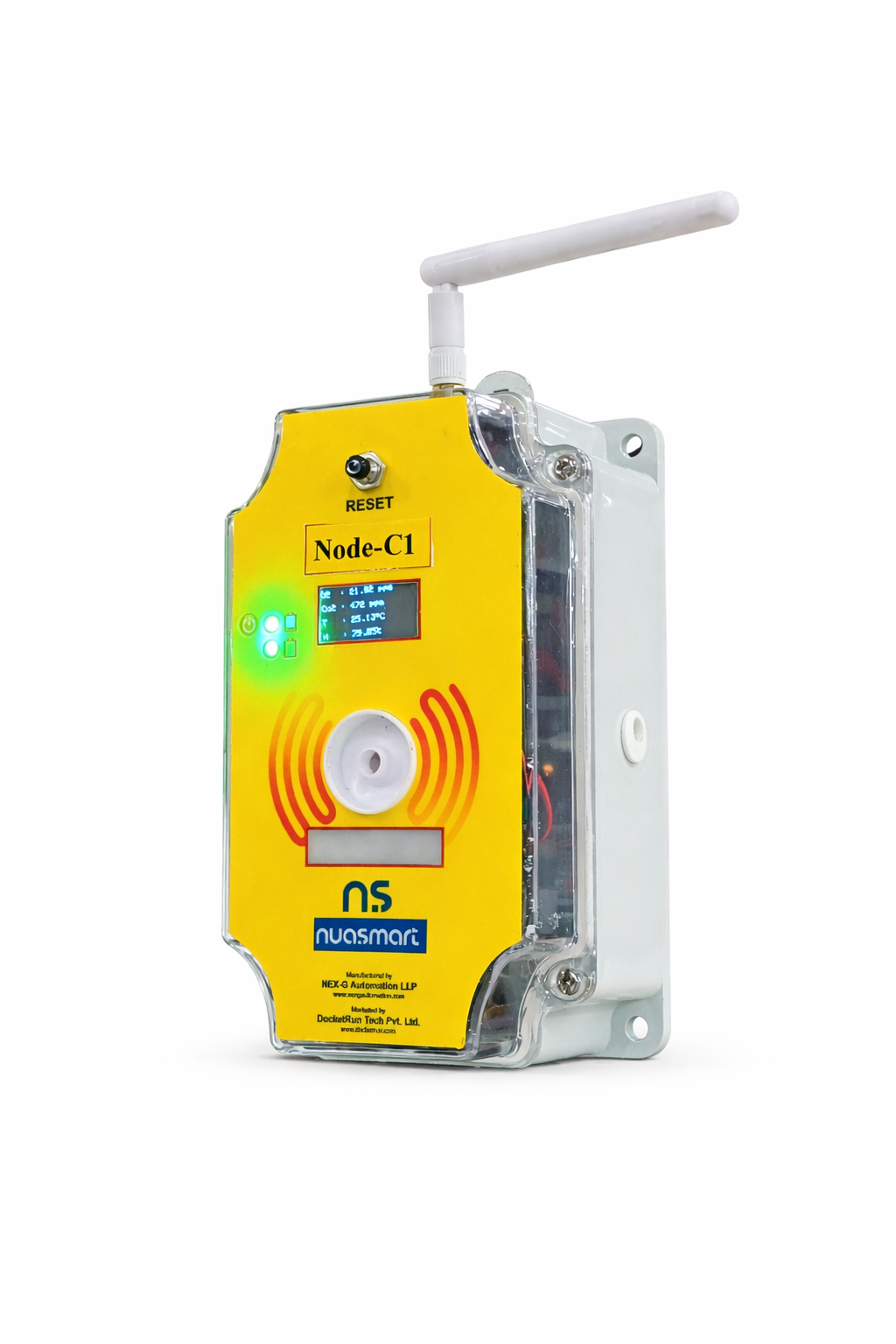

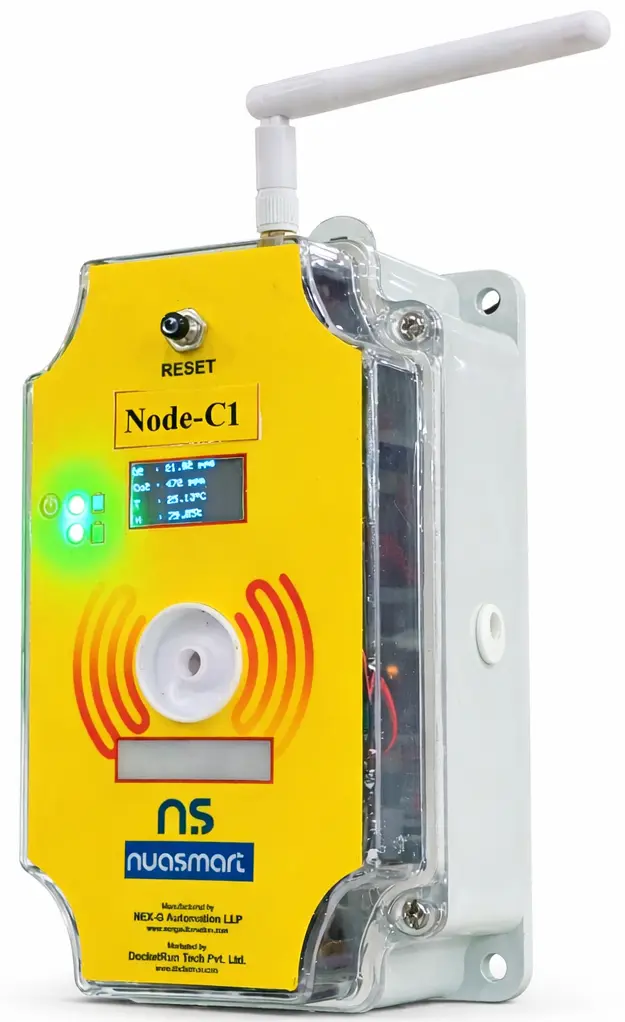

02 Forklift Receiver

03 Audible Siren

04 Visual LEDs

05 Dual Relay Outputs

06 IP54 Rugged Housing

Control & Integration

Proximity detection
with vehicle integration.

The system combines UWB proximity detection with local audible and visual warnings and potential-free relay outputs. This allows the safety response to be connected to relay-compatible forklift control systems where required.

01	UWB Detection	Detect pedestrian proximity within a configurable 1–10 metre range with ±20 cm accuracy.
02	Audible Siren	Provide a high-decibel proximity warning with a specified output range of 90–110 dB.
03	Visual LEDs	Provide a visual indication when a configured proximity condition is detected.
04	Relay Output 1	Potential-free NO/NC relay contact for connection to compatible vehicle control circuitry.
05	Relay Output 2	Second potential-free NO/NC relay contact for supported control functions.
06	Forklift Controller	Integrate the receiver with relay-compatible controllers for speed reduction or engine cut-off applications.

System Flow

How proximity becomes a safety response.

A typical deployment places UWB wearable tags with pedestrians and a receiver on the forklift. When a configurable proximity condition is reached, the system provides warning and relay outputs.

Wearable Tag

Pedestrian carries a UWB-enabled belt-worn device.

→

UWB Detection

The system measures proximity within the configured danger zone.

→

Forklift Receiver

Vehicle-mounted receiver processes the proximity condition.

→

Alert + Relay Control

Audible/visual warnings and compatible relay actions are activated.

Alert Configuration

Safety Response Modes

Proximity WarningTrigger a response when a pedestrian enters the configured forklift danger zone.

Audible AlertUse the 90–110 dB siren output to provide a high-decibel proximity warning.

Visual WarningUse onboard LEDs to provide a visible indication of the proximity condition.

Speed ReductionUse a potential-free relay interface with compatible vehicle control systems for speed reduction applications.

Engine Cut-OffWhere supported by the vehicle control architecture, relay outputs can be used for engine cut-off applications.

Configurable ZoneSet the detection range within the specified 1–10 metre configurable range.

Real-Time ResponseThe specified system latency is below 200 ms for proximity response.

Dual Relay OutputTwo potential-free NO/NC relay contacts support compatible control interfaces.

Core Capabilities

Built for active industrial traffic.

A focused UWB safety architecture for detecting pedestrian proximity around forklifts and providing immediate warning and compatible relay control.

Ultra-Wideband Precision

Delivers sub-meter proximity accuracy for dependable sensing on active industrial floors, with specified accuracy of ±20 cm.

Real-Time Collision Prevention

Triggers visual and high-decibel audible alerts when a pedestrian breaches the configured danger zone.

Automated Forklift Speed Control

Dual potential-free relays can interface with vehicle control systems for supported speed reduction or engine cut-off applications.

Ergonomic Wearable Design

Lightweight belt-mounted wearable units provide a practical form factor for pedestrian deployment.

Plug-and-Play Architecture

Designed without localized Wi-Fi infrastructure or active outdoor GPS dependency for straightforward deployment.

System Benefits

Industrial Advantages

Enhanced Worker Safety

Proactively identifies pedestrian proximity around moving industrial vehicles.

UWB Precision

Specified ±20 cm proximity accuracy supports controlled detection zones.

Real-Time Alerts

Audible siren and visual LEDs provide immediate proximity warnings.

Relay Integration

Two potential-free NO/NC relay contacts support compatible control circuitry.

No Wi-Fi/GPS Dependency

The specified architecture does not depend on localized Wi-Fi infrastructure or active outdoor GPS.

Ergonomic Wearables

Belt-mounted wearable units are designed for practical pedestrian use.

IP54 Protection

Wearable and receiver hardware is specified with IP54-rated aluminum housing.

Universal Forklift Compatibility

The receiver is specified for universal use with relay-compatible controllers.

Engineering Data

Technical Specifications

Product specifications provided for the Forklift Anti-Collision Wearables system.

Detection Technology	Ultra-Wideband (UWB)	IEEE 802.15.4 compliant
Detection Range	1–10 meters	Configurable range; accuracy ±20 cm
Proximity Accuracy	±20 cm	Specified UWB proximity accuracy
System Latency	<200 ms	Specified response latency
Alert Types	Audible Siren · Visual LEDs	Audible output specified at 90–110 dB
Relay Outputs	2 × Potential-Free Relay Contacts	NO/NC contacts
Charging Method	USB-C / Magnetic Charger	Specified charging options
Wearable Battery Life	5 Days	Specified battery life
Enclosure Material	Anodized Aluminum Alloy	IP54 rated
Mounting Method	Wearables: Waist Belt \| Receiver: Magnetic/Bracket	Specified mounting options
Forklift Compatibility	Universal with relay-compatible controllers	Vehicle integration through relay interface
Temperature Range	−10°C to +60°C	Specified operating temperature range

Deployment

Designed for pedestrian
and forklift interaction zones.

Deploy wearable tags with ground personnel and mount the receiver on the forklift. The system is designed for configurable detection zones, immediate warnings and relay-based integration with compatible vehicle control systems.

PedestrianWear the UWB-enabled tag on a waist belt.

ForkliftMount the receiver using the specified magnetic or bracket method.

Detection ZoneConfigure the proximity range within the specified 1–10 metre range.

Vehicle ControlConnect the dual potential-free relay outputs to compatible control circuitry.

Deployment Areas

Applications

01Warehouses & Fulfillment Centers

02Automotive & Heavy Manufacturing

03Chemical, Pharma & FMCG Plants

04Logistics & Cold Chain Warehousing

05Mining & Construction Sites

06Industrial Yards & Hubs

07Forklift-Pedestrian Safety Zones

08Material Handling Areas

09Industrial Traffic Areas

Integration

Configure the system
around your safety zone.

Wearable TagsDeploy UWB-enabled belt-worn tags with pedestrians in the operating area.

Forklift ReceiverInstall the receiver using magnetic or bracket mounting on the vehicle.

Detection RangeConfigure the operating zone within the specified 1–10 metre detection range.

Audible + Visual AlertUse the 90–110 dB siren and onboard LEDs for proximity notification.

Relay InterfaceConnect the two potential-free NO/NC relay contacts to compatible vehicle control systems.

System TestingVerify proximity detection, alert operation and relay response before deployment.

Frequently Asked Questions

Forklift Anti-Collision Wearables FAQ

The system uses Ultra-Wideband (UWB) proximity detection and is specified as IEEE 802.15.4 compliant.

The configurable detection range is specified as 1–10 metres, with ±20 cm proximity accuracy.

The system provides an audible siren and visual LEDs. The specified audible output range is 90–110 dB.

Yes. The receiver has two potential-free NO/NC relay contacts and is specified for universal use with relay-compatible controllers.

The supplied product specification states that the dual potential-free relays can tie directly into vehicle control systems for automatic speed reduction or engine cut-off applications.

The supplied product description specifies a plug-and-play architecture without localized Wi-Fi infrastructure or active outdoor GPS dependency.

Wearables use waist-belt mounting and the receiver uses magnetic/bracket mounting. Charging is specified as USB-C or magnetic charging.

The specified operating temperature range is −10°C to +60°C.
